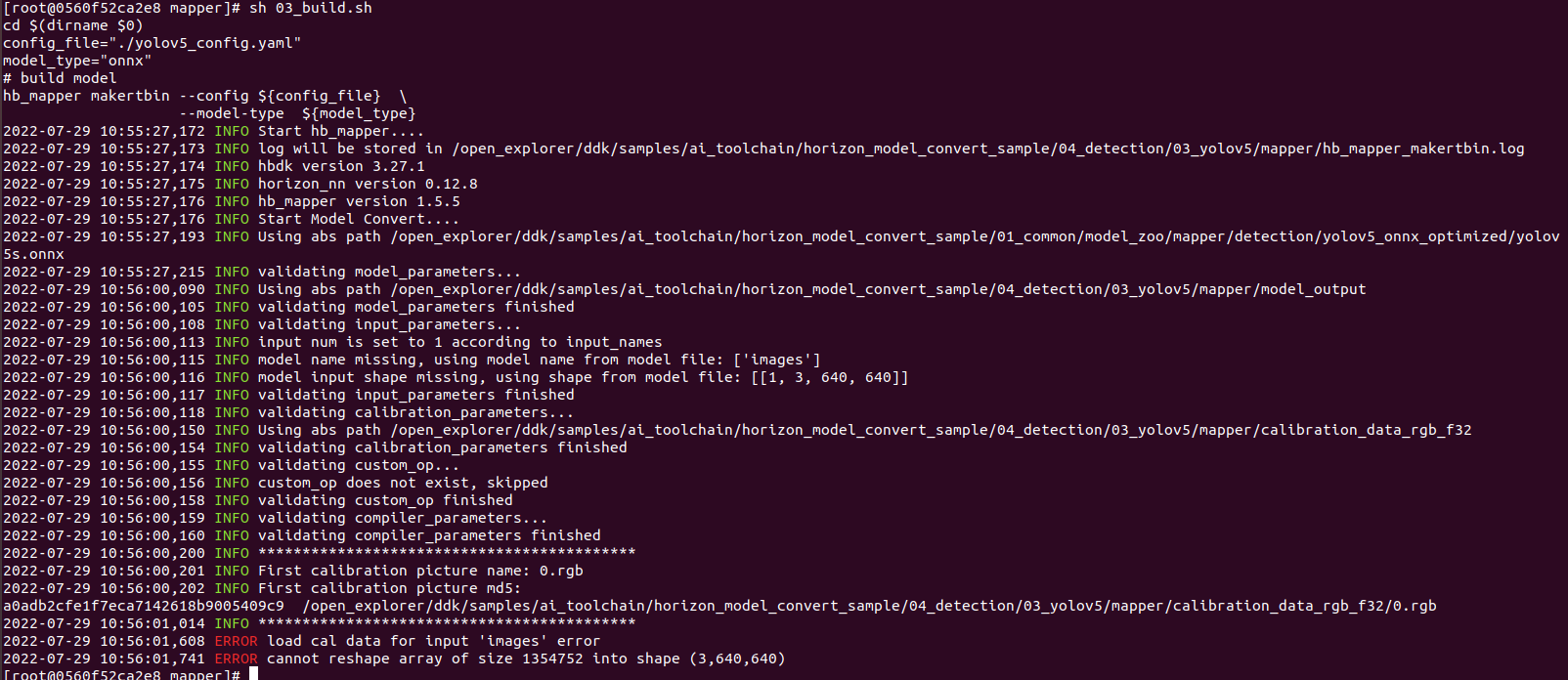

在使用自己训练的yolov5模型进行模型构建，运行到03_build.sh报错，如下：
前两步均正确无误，日志文件如下：
2022-07-29 10:55:27,172 file: hb_mapper.py func: hb_mapper line No: 111 Start hb_mapper…
2022-07-29 10:55:27,173 file: hb_mapper.py func: hb_mapper line No: 112 log will be stored in /open_explorer/ddk/samples/ai_toolchain/horizon_model_convert_sample/04_detection/03_yolov5/mapper/hb_mapper_makertbin.log
2022-07-29 10:55:27,174 file: hb_mapper.py func: hb_mapper line No: 113 hbdk version 3.27.1
2022-07-29 10:55:27,175 file: hb_mapper.py func: hb_mapper line No: 114 horizon_nn version 0.12.8
2022-07-29 10:55:27,176 file: hb_mapper.py func: hb_mapper line No: 115 hb_mapper version 1.5.5
2022-07-29 10:55:27,176 file: hb_mapper_makertbin.py func: hb_mapper_makertbin line No: 590 Start Model Convert…
2022-07-29 10:55:27,193 file: mapper_conf_parser.py func: mapper_conf_parser line No: 811 Using abs path /open_explorer/ddk/samples/ai_toolchain/horizon_model_convert_sample/01_common/model_zoo/mapper/detection/yolov5_onnx_optimized/yolov5s.onnx
2022-07-29 10:55:27,215 file: mapper_conf_parser.py func: mapper_conf_parser line No: 137 validating model_parameters…
2022-07-29 10:56:00,090 file: mapper_conf_parser.py func: mapper_conf_parser line No: 811 Using abs path /open_explorer/ddk/samples/ai_toolchain/horizon_model_convert_sample/04_detection/03_yolov5/mapper/model_output
2022-07-29 10:56:00,105 file: mapper_conf_parser.py func: mapper_conf_parser line No: 149 validating model_parameters finished
2022-07-29 10:56:00,108 file: mapper_conf_parser.py func: mapper_conf_parser line No: 153 validating input_parameters…
2022-07-29 10:56:00,111 file: helper.py func: helper line No: 124 Model input names: [‘images’]
2022-07-29 10:56:00,113 file: mapper_conf_parser.py func: mapper_conf_parser line No: 273 input num is set to 1 according to input_names
2022-07-29 10:56:00,115 file: mapper_conf_parser.py func: mapper_conf_parser line No: 279 model name missing, using model name from model file: [‘images’]
2022-07-29 10:56:00,116 file: mapper_conf_parser.py func: mapper_conf_parser line No: 325 model input shape missing, using shape from model file: [[1, 3, 640, 640]]
2022-07-29 10:56:00,117 file: mapper_conf_parser.py func: mapper_conf_parser line No: 164 validating input_parameters finished
2022-07-29 10:56:00,118 file: mapper_conf_parser.py func: mapper_conf_parser line No: 168 validating calibration_parameters…
2022-07-29 10:56:00,150 file: mapper_conf_parser.py func: mapper_conf_parser line No: 811 Using abs path /open_explorer/ddk/samples/ai_toolchain/horizon_model_convert_sample/04_detection/03_yolov5/mapper/calibration_data_rgb_f32
2022-07-29 10:56:00,154 file: mapper_conf_parser.py func: mapper_conf_parser line No: 182 validating calibration_parameters finished
2022-07-29 10:56:00,155 file: mapper_conf_parser.py func: mapper_conf_parser line No: 186 validating custom_op…
2022-07-29 10:56:00,156 file: mapper_conf_parser.py func: mapper_conf_parser line No: 724 custom_op does not exist, skipped
2022-07-29 10:56:00,158 file: mapper_conf_parser.py func: mapper_conf_parser line No: 192 validating custom_op finished
2022-07-29 10:56:00,159 file: mapper_conf_parser.py func: mapper_conf_parser line No: 195 validating compiler_parameters…
2022-07-29 10:56:00,160 file: mapper_conf_parser.py func: mapper_conf_parser line No: 201 validating compiler_parameters finished
2022-07-29 10:56:00,161 file: hb_mapper_makertbin.py func: hb_mapper_makertbin line No: 56 Dump config:
2022-07-29 10:56:00,161 file: hb_mapper_makertbin.py func: hb_mapper_makertbin line No: 57 calibration_parameters:
cal_data_dir: ./calibration_data_rgb_f32
calibration_type: default
preprocess_on: false
compiler_parameters:
compile_mode: latency
debug: false
optimize_level: O3
input_parameters:
input_layout_train: NCHW
input_name: ‘’
input_shape: ‘’
input_type_rt: nv12
input_type_train: rgb
mean_value: ‘’
norm_type: data_scale
scale_value: ‘0.003921568627451’
model_parameters:
layer_out_dump: false
log_level: debug
march: bernoulli2
onnx_model: /open_explorer/ddk/samples/ai_toolchain/horizon_model_convert_sample/01_common/model_zoo/mapper/detection/yolov5_onnx_optimized/yolov5s.onnx
output_model_file_prefix: yolov5_672x672_nv12
working_dir: model_output
2022-07-29 10:56:00,171 file: hb_mapper_makertbin.py func: hb_mapper_makertbin line No: 63 input ‘images’ : original model shape: [1, 3, 640, 640]
2022-07-29 10:56:00,200 file: loader.py func: loader line No: 44 *******************************************
2022-07-29 10:56:00,201 file: loader.py func: loader line No: 45 First calibration picture name: 0.rgb
2022-07-29 10:56:00,202 file: loader.py func: loader line No: 47 First calibration picture md5:
2022-07-29 10:56:01,014 file: loader.py func: loader line No: 51 *******************************************
2022-07-29 10:56:01,023 file: loader.py func: loader line No: 125 created RawImageDirLoader of shape:[3, 640, 640]
2022-07-29 10:56:01,024 file: loader.py func: loader line No: 130 Read raw file: /open_explorer/ddk/samples/ai_toolchain/horizon_model_convert_sample/04_detection/03_yolov5/mapper/calibration_data_rgb_f32/0.rgb
2022-07-29 10:56:01,608 file: hb_mapper_makertbin.py func: hb_mapper_makertbin line No: 279 load cal data for input ‘images’ error
2022-07-29 10:56:01,609 file: tool_utils.py func: tool_utils line No: 116 exception in command: makertbin
2022-07-29 10:56:01,740 file: tool_utils.py func: tool_utils line No: 117 Traceback (most recent call last):
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/utils/tool_utils.py”, line 114, in __decorator
func(*args, **kargs)
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/hb_mapper.py”, line 117, in makertbin
MakertbinRunner(config, model_type).run(__version__)
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/hb_mapper_makertbin.py”, line 596, in run
build_cal_params = self._get_build_calibration_params()
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/hb_mapper_makertbin.py”, line 280, in _get_build_calibration_params
raise e
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/hb_mapper_makertbin.py”, line 276, in _get_build_calibration_params
{input_name: get_all_data(loaders[input_name])})
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/utils/tool_utils.py”, line 319, in get_all_data
data_set = np.array(next(generator))
File “/usr/local/lib/python3.6/site-packages/horizon_nn/data/loader.py”, line 32, in __next__
return self.perform()
File “/usr/local/lib/python3.6/site-packages/horizon_nn/data/loader.py”, line 35, in perform
data = self._parant.perform()
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/data/loader.py”, line 57, in perform
return self.image_read_method(next(self.file_gen))
File “/usr/local/lib/python3.6/site-packages/horizon_tc_ui/data/loader.py”, line 132, in image_read_method
.reshape(self.shape).astype(np.float32)
ValueError: cannot reshape array of size 1354752 into shape (3,640,640)
2022-07-29 10:56:01,741 file: tool_utils.py func: tool_utils line No: 118 cannot reshape array of size 1354752 into shape (3,640,640)
