基于MIPI Camera的目标检测 web 端展示示例出错

sunrise@ubuntu:/app/ai_inference/05_web_display_camera_sample$ sudo python3 mipi_camera_web.py

[C][3690][07-30][12:18:04:931][configuration.cpp:51][EasyDNN]EasyDNN version: 0.3.5

[BPU_PLAT]BPU Platform Version(1.3.1)!

[HBRT] set log level as 0. version = 3.13.27

ioctl read error, ret = -1 error = 121

keros_i2c_read failed

ioctl write error, ret = -1 error = 121

keros_i2c_write failed

ioctl write error, ret = -1 error = 121

keros_i2c_write failed

ioctl read error, ret = -1 error = 121

keros_i2c_read failed

ioctl read error, ret = -1 error = 121

keros_i2c_read failed

ioctl read error, ret = -1 error = 121

keros_i2c_read failed

ioctl read error, ret = -1 error = 121

keros_i2c_read failed

ioctl read error, ret = -1 error = 121

keros_i2c_read failed

[000:000] (keros_util.cpp:99): keros_authentication failed, ret = 0

[000:000] (configuration.cpp:147): Keros key init failed.

[DNN] Runtime version = 1.8.4_(3.13.27 HBRT)

[HorizonRT] The model builder version = 1.5.2

start ptf 547151053280

[[ 1.14109039e+01 -7.75694847e-01 1.92137901e+03 1.08148106e+03

5.20426929e-01 5.90000000e+01]

[ 1.26648331e+01 7.12396860e+00 1.90858910e+03 1.08148106e+03

6.30833447e-01 0.00000000e+00]

[ 5.28334923e+02 2.97700369e+02 6.81968465e+02 4.48379423e+02

5.37012875e-01 1.40000000e+01]]

Error: no vps chn can be get

[x3_venc_file]:[612]:Invalid image address!

connection handler failed

TypeError: expected bytes, NoneType found

The above exception was the direct cause of the following exception:

Traceback (most recent call last):

File “/usr/local/lib/python3.8/dist-packages/websockets/legacy/server.py”, line 232, in handler

await self.ws_handler(self)

File “/usr/local/lib/python3.8/dist-packages/websockets/legacy/server.py”, line 1146, in _ws_handler

return await cast(

File “mipi_camera_web.py”, line 249, in web_service

enc.encode_file(origin_image)

SystemError: <method ‘encode_file’ of ‘libsrcampy.Encoder’ objects> returned a result with an error set

[[5.28334923e+02 2.97700369e+02 6.81968465e+02 4.46163551e+02

5.52025557e-01 1.40000000e+01]

[1.26648331e+01 7.12396860e+00 1.90858910e+03 1.08148106e+03

6.31318271e-01 0.00000000e+00]]

Error: no vps chn can be get

[x3_venc_file]:[612]:Invalid image address!

connection handler failed

TypeError: expected bytes, NoneType found

The above exception was the direct cause of the following exception:

Traceback (most recent call last):

File “/usr/local/lib/python3.8/dist-packages/websockets/legacy/server.py”, line 232, in handler

await self.ws_handler(self)

File “/usr/local/lib/python3.8/dist-packages/websockets/legacy/server.py”, line 1146, in _ws_handler

return await cast(

File “mipi_camera_web.py”, line 249, in web_service

enc.encode_file(origin_image)

SystemError: <method ‘encode_file’ of ‘libsrcampy.Encoder’ objects> returned a result with an error set

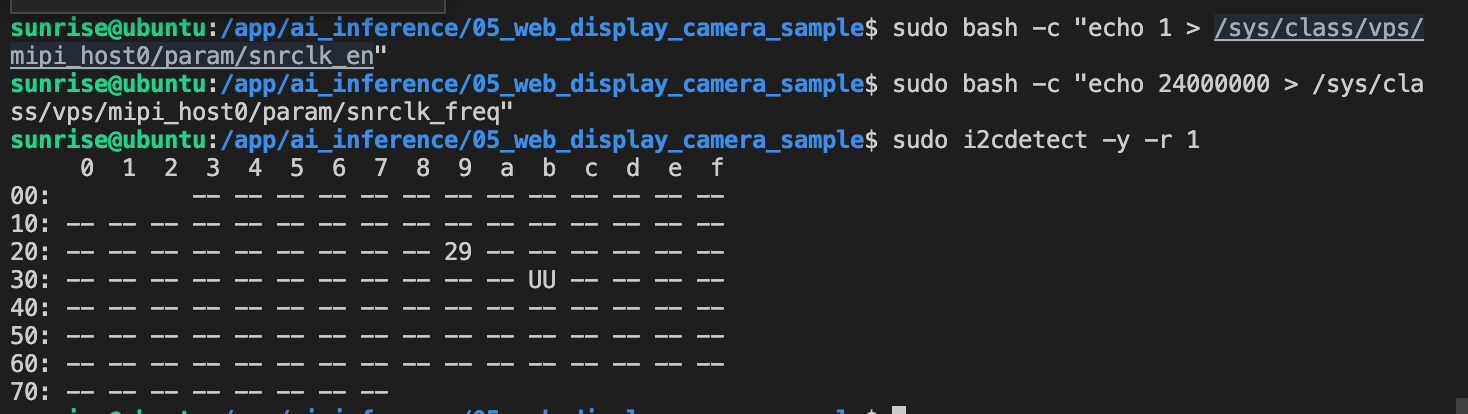

检测摄像头正常

我也遇到了

我也遇到了和你一样的问题。

您好,您的问题我们已收到,技术同事稍后将会为您解答~

终于解决了,第228行改成

cam.open_cam(0, 1, 30, [1920, 512], [1080, 512])

就可以运行了

?谢谢大佬!
