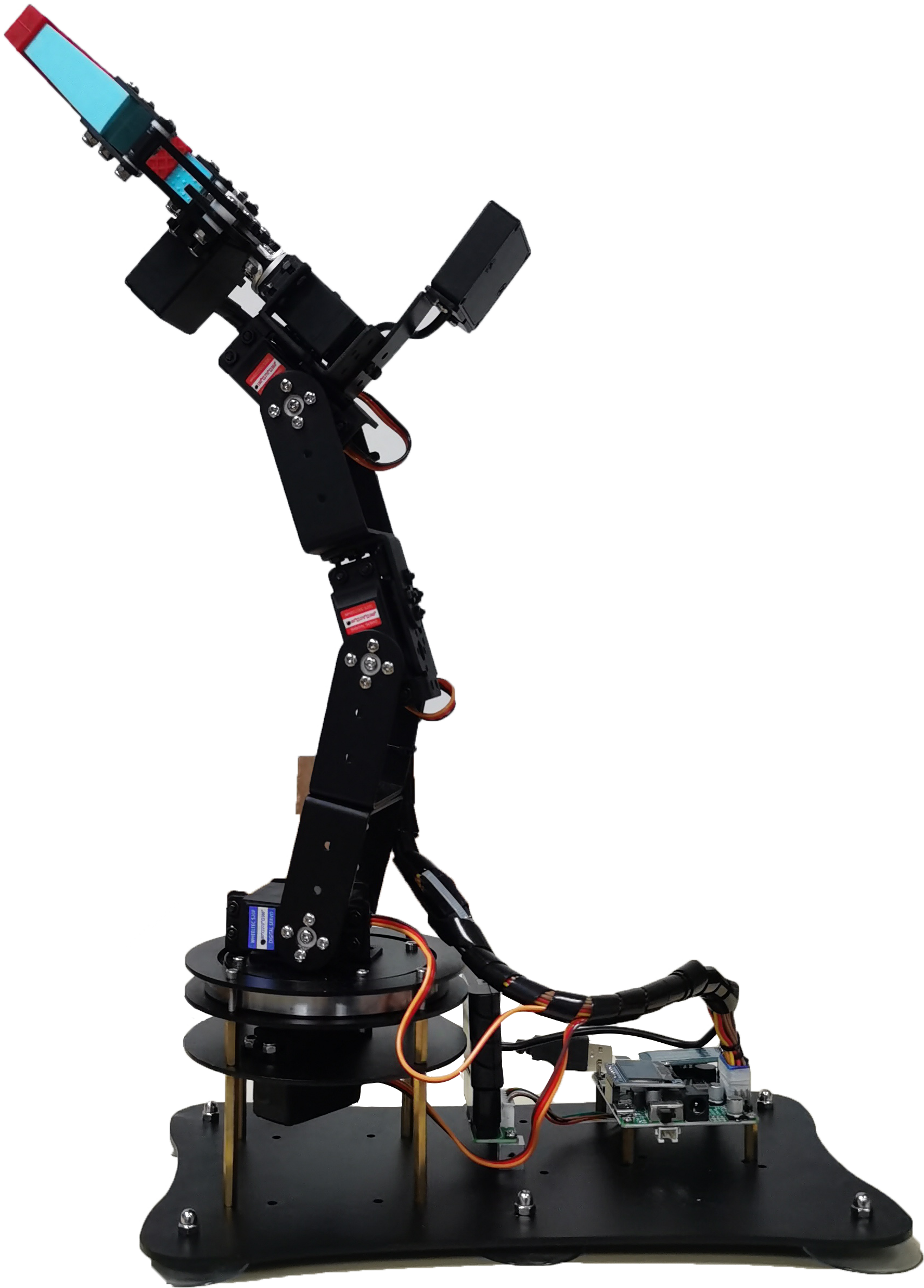

我们机器人上的机械臂是买了一个五自由度机械臂-

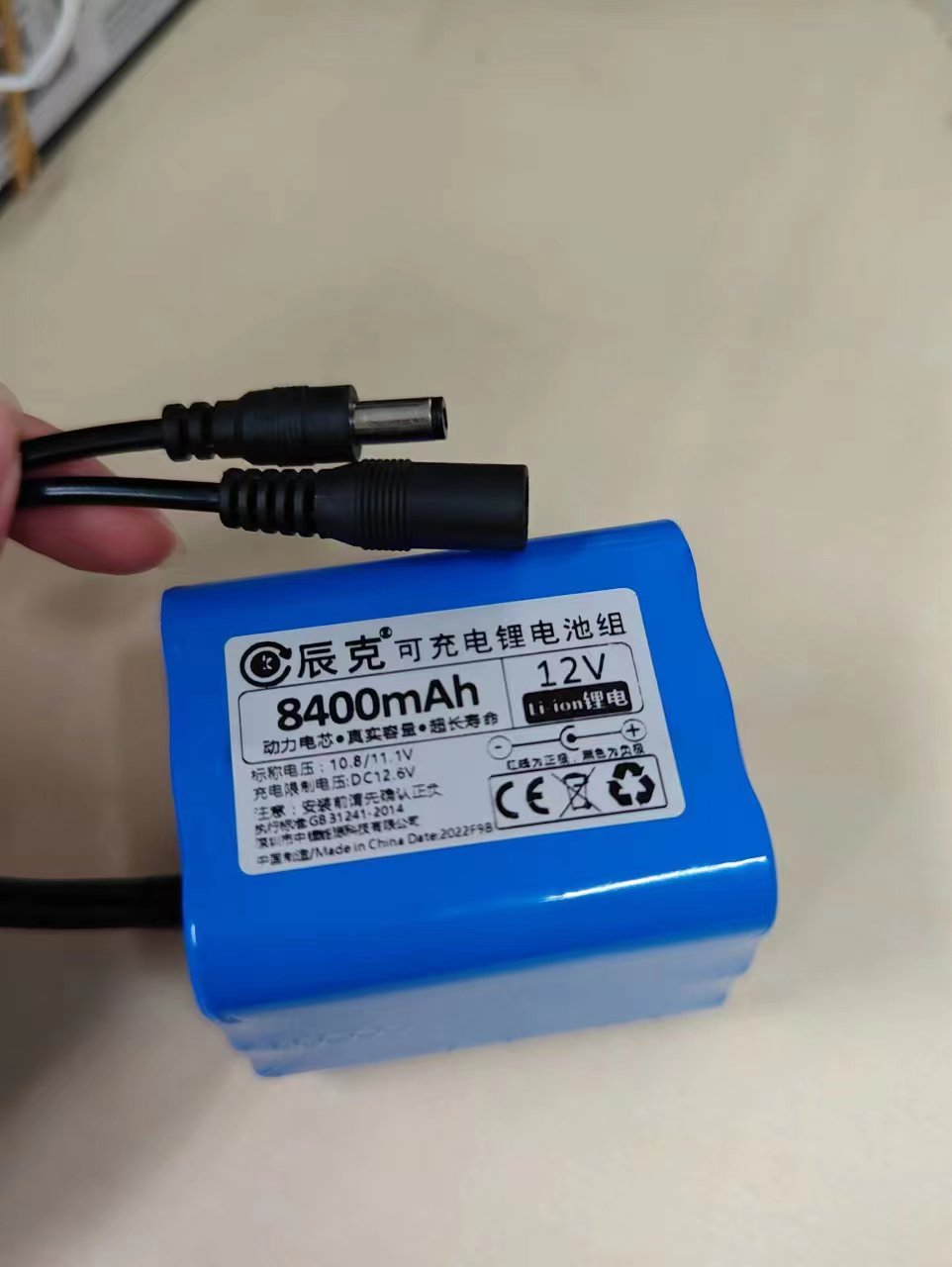

额外使用12V5A的锂电池供电-
锂电池.jpg-
缺失了x轴上的自由度，-
但是放在小车上抓取一些日常用品一般够用了-
使用的是卖家提供的模型-
首先打开Moveit配置机械臂的一些初始位姿-

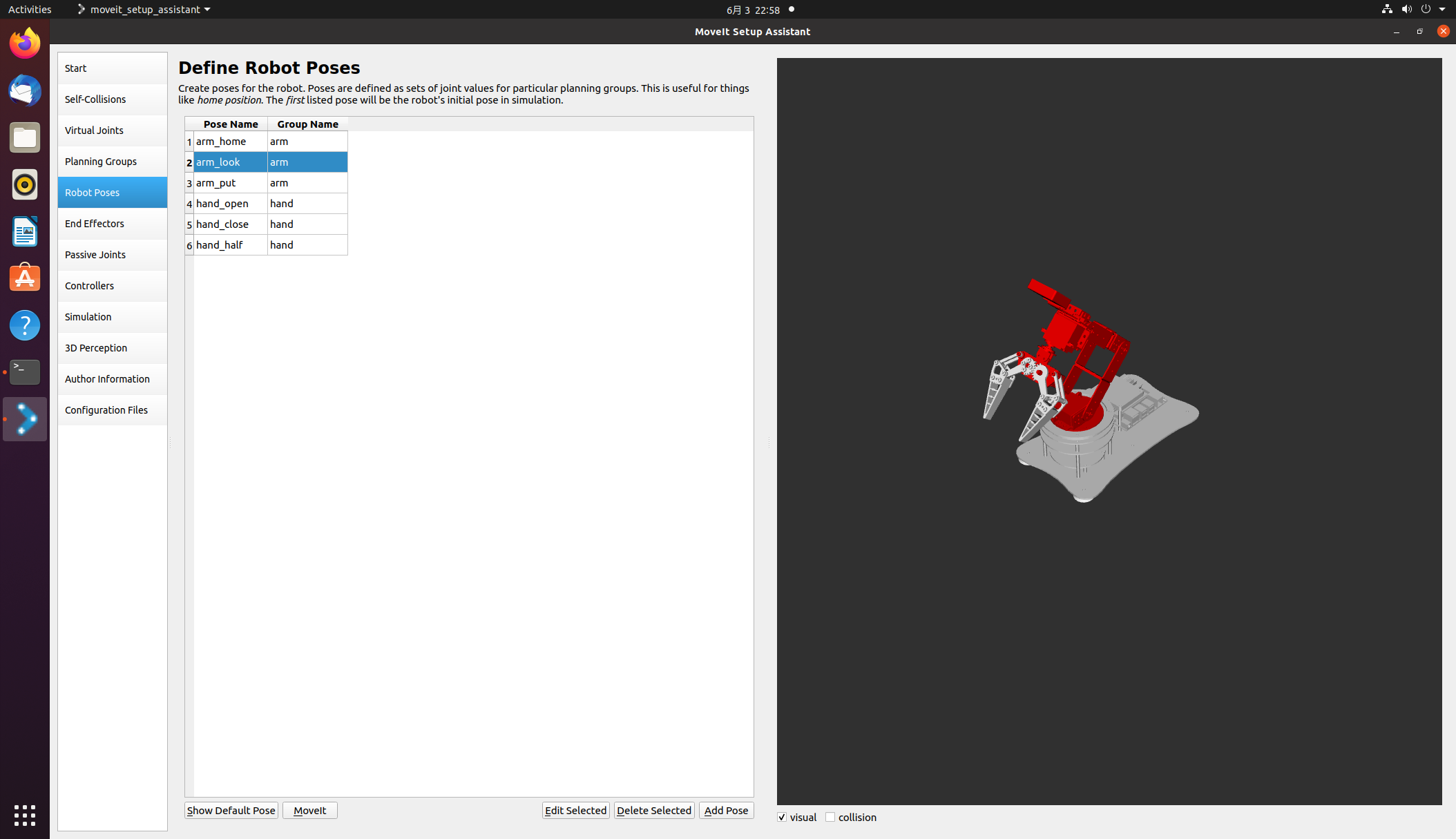

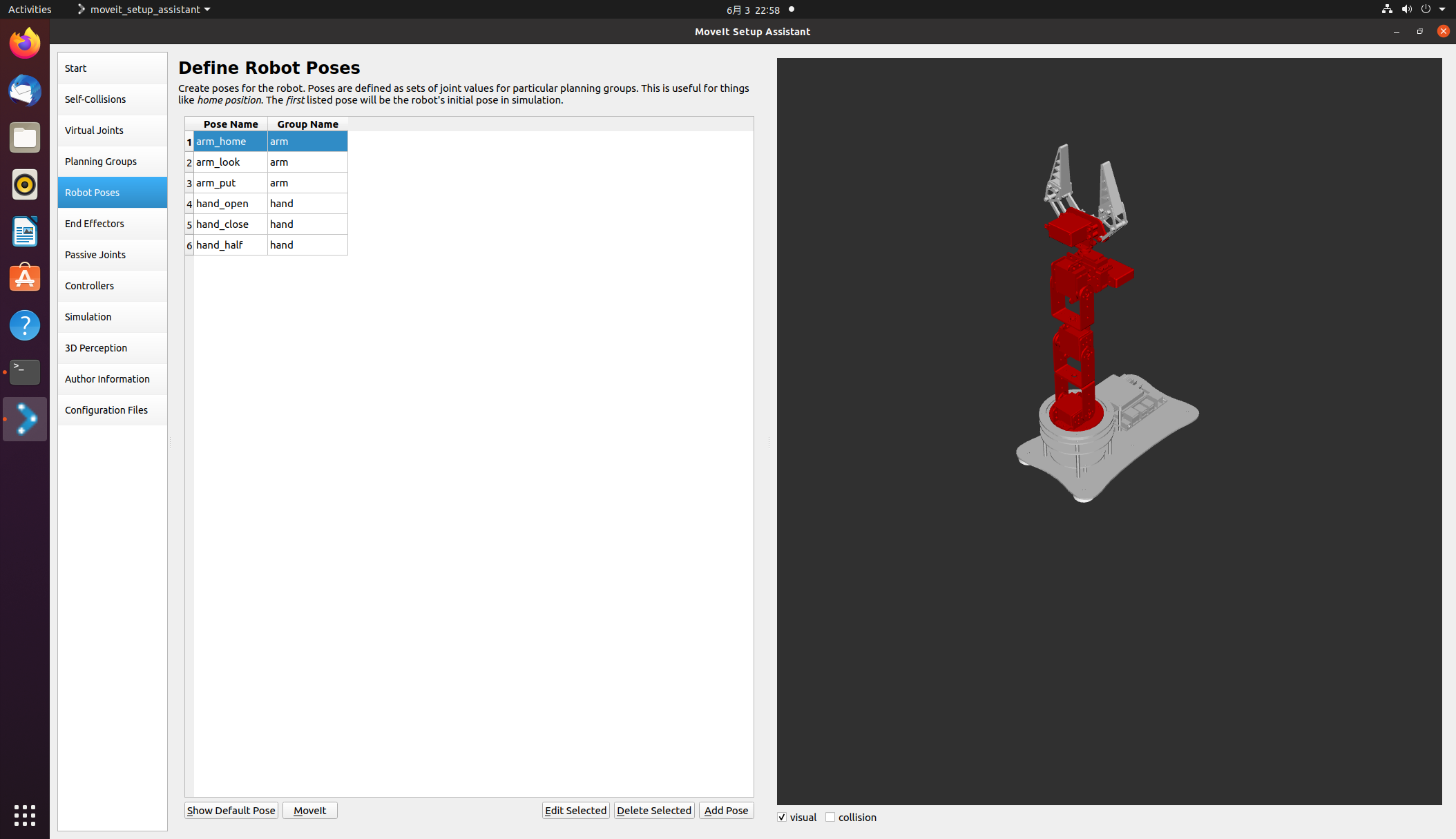

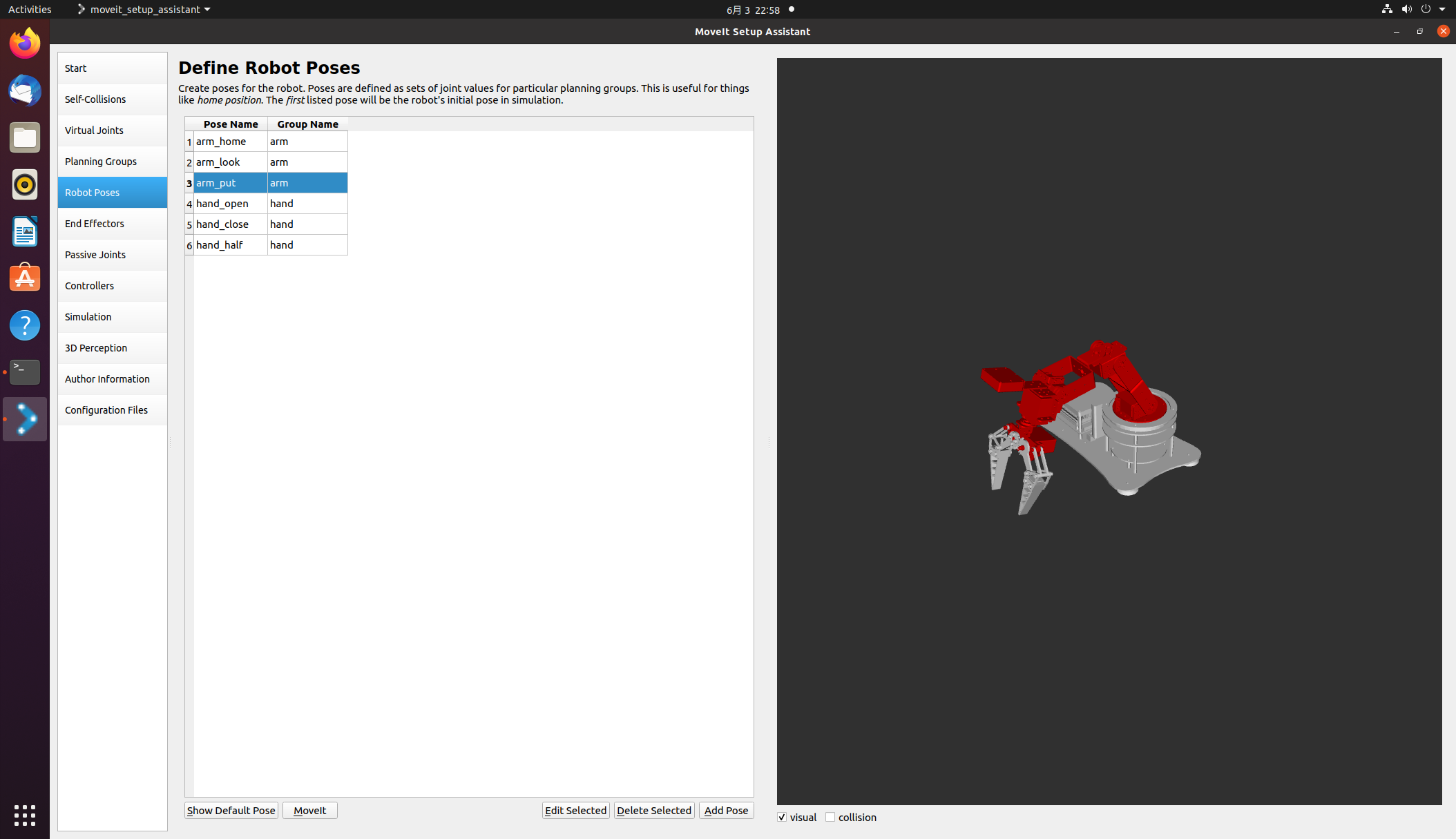

我分别预设了三个机械臂位姿与三个夹爪位姿-
分别是arm_home、ararm_put、arm_put-
(/uploads/dataSynchronization/api/v1/static/imgData/1685804276585.gif)!418f8bef60ba529588f0d56df1e055f.png9e11d3bf8462daa9265f8dc8dc3aac2.png0dc6bc649530bc2b2e50c31ab87d770.png
然后是自己写的机械臂逆解程序（此处参考https://blog.csdn.net/howard789/article/details/122120720）
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
import rospy, sys
import moveit_commander
import math
from moveit_commander import MoveGroupCommander
from geometry_msgs.msg import Pose
from copy import deepcopy
# P = 6.7
pi = math.pi
A1 = 10.5
A2 = 10.5
A3 = 10.5
A4 = 17.5
MAX_LEN = A2+A3+A4
MAX_HIGH = A1+A2+A3+A4
def cos(degree):
return math.cos(math.radians(degree))
def sin(degree):
return math.sin(math.radians(degree))
def atan2(v1,v2):
rad=math.atan2(v1,v2)
return math.degrees(rad)
def backward_kinematics(x, y, z,alpha):
# len = math.sqrt(x*x + (P+y)*(P+y))
j1 = math.atan2( x, y)
x = abs(x)
y = abs(y)
len = math.sqrt(x*x + y*y)
# print (len)
high = z
if len > MAX_LEN or high > MAX_HIGH:
print ('超出范围')
return 0,0,0,0
L = len - A4*sin(alpha)
H = high - A4*cos(alpha) - A1
# print('L',L)
# print('H',H)
# print ((L*L + H*H - A2*A2 - A3*A3 )/(2 * A2 * A3))
j3 = math.acos((L*L + H*H - A2*A2 - A3*A3 )/(2 * A2 * A3))
K1 = A2 + A3*math.cos(j3)
# print('K1',K1)
K2 = A3*math.sin(j3)
# print('K2',K2)
W = math.atan2(K2, K1)
# print('W',W)
# print('math.atan(L/H)',math.atan(L/H))
j2 = math.atan2(L,H) - W
# print (math.radians(alpha))
j4 = math.radians(alpha) - j2 - j3
return j1,j2,j3,j4
def test_ok(x,y,z):
for alpha in range(90,180):
deg1, deg2, deg3, deg4 = backward_kinematics(x, y, z, alpha)
if (deg1 < (0-pi/2)) or (deg1 > pi/2) or (deg2 < 0) or (deg2 > pi/2) or (deg3 < 0) or (deg3 > pi/2) or (deg4 < (0 - pi/4)) or (deg4 > pi/2):
# print (deg1, deg2, deg3, deg4)
alpha = alpha + 1
print (alpha)
else:
print ([deg1, -deg2, -deg3, -deg4])
return [deg1, 0, 0, 0, 0], [deg1, -deg2, -deg3, -deg4, 0]
class MoveItFkDemo:
def __init__(self):
print(rospy.has_param('/x'))
# 此处使用launch文件启动的话可以在launch文件里面传入xyz参数，
# 如果不用launch文件启动的话可以直接在下面改写xyz坐标
x = rospy.get_param('x') # 获取参数
y = rospy.get_param('y')
z = rospy.get_param('z')
# 初始化move_group的API，出现roscpp是因为底层是通过C++进行实现的
moveit_commander.roscpp_initialize(sys.argv)
# 初始化ROS节点，节点名为'moveit_fk_demo'
rospy.init_node('moveit_fk_demo', anonymous=True)
# 初始化需要使用move group控制的机械臂中的arm group
arm = moveit_commander.MoveGroupCommander('arm')
hand = moveit_commander.MoveGroupCommander('hand')
# 设置机械臂运动的允许误差值，单位弧度
arm.set_goal_joint_tolerance(0.01)
# 设置允许的最大速度和加速度，范围0~1
arm.set_max_acceleration_scaling_factor(0.5)
arm.set_max_velocity_scaling_factor(0.5)
# 控制机械臂先回到初始化位置，home是setup assistant中设置的
arm.set_named_target('arm_home')
arm.go() #让机械臂先规划，再运动，阻塞指令，直到机械臂到达home后再向下执行
hand.set_named_target('hand_open')
hand.go()
rospy.sleep(1)
arm.set_named_target('arm_look')
arm.go()
rospy.sleep(5)
#deticate
# for i in range (2):
# 设置机械臂的目标位置，使用4轴的位置数据进行描述（单位：弧度）
# joint_positions = [0.7853981633974483, -0.011235602203205963, -0.8998130107703047, -1.4102392921789475, 0]
joint_positions1, joint_positions2 = test_ok(x,y,z)
arm.set_joint_value_target(joint_positions1) #设置关节值作为目标值
# 控制机械臂完成运动
arm.go() # 规划+执行
rospy.sleep(1)
arm.set_joint_value_target(joint_positions2)
arm.go() # 规划+执行
rospy.sleep(1)
hand.set_named_target('hand_half')
hand.go()
rospy.sleep(1)
arm.set_named_target('arm_look')
arm.go()
rospy.sleep(1)
arm.set_named_target('arm_put')
arm.go()
rospy.sleep(1)
hand.set_named_target('hand_open')
hand.go()
rospy.sleep(1)
arm.set_named_target('arm_home')
arm.go()
rospy.sleep(1)
# print (i)
# 控制机械臂先回到初始化位置
arm.set_named_target('arm_put')
arm.go()
rospy.sleep(1)
arm.set_named_target('arm_home')
arm.go() #让机械臂先规划，再运动，阻塞指令，直到机械臂到达home后再向下执行
rospy.sleep(1)
# 关闭并退出moveit
moveit_commander.roscpp_shutdown()
moveit_commander.os._exit(0)
if __name__ == "__main__":
try:
MoveItFkDemo()
except rospy.ROSInterruptException:
pass
结合地平线官方例程中的yolov5识别，使用双目测距-
(/uploads/dataSynchronization/api/v1/static/imgData/1685805340614.png)

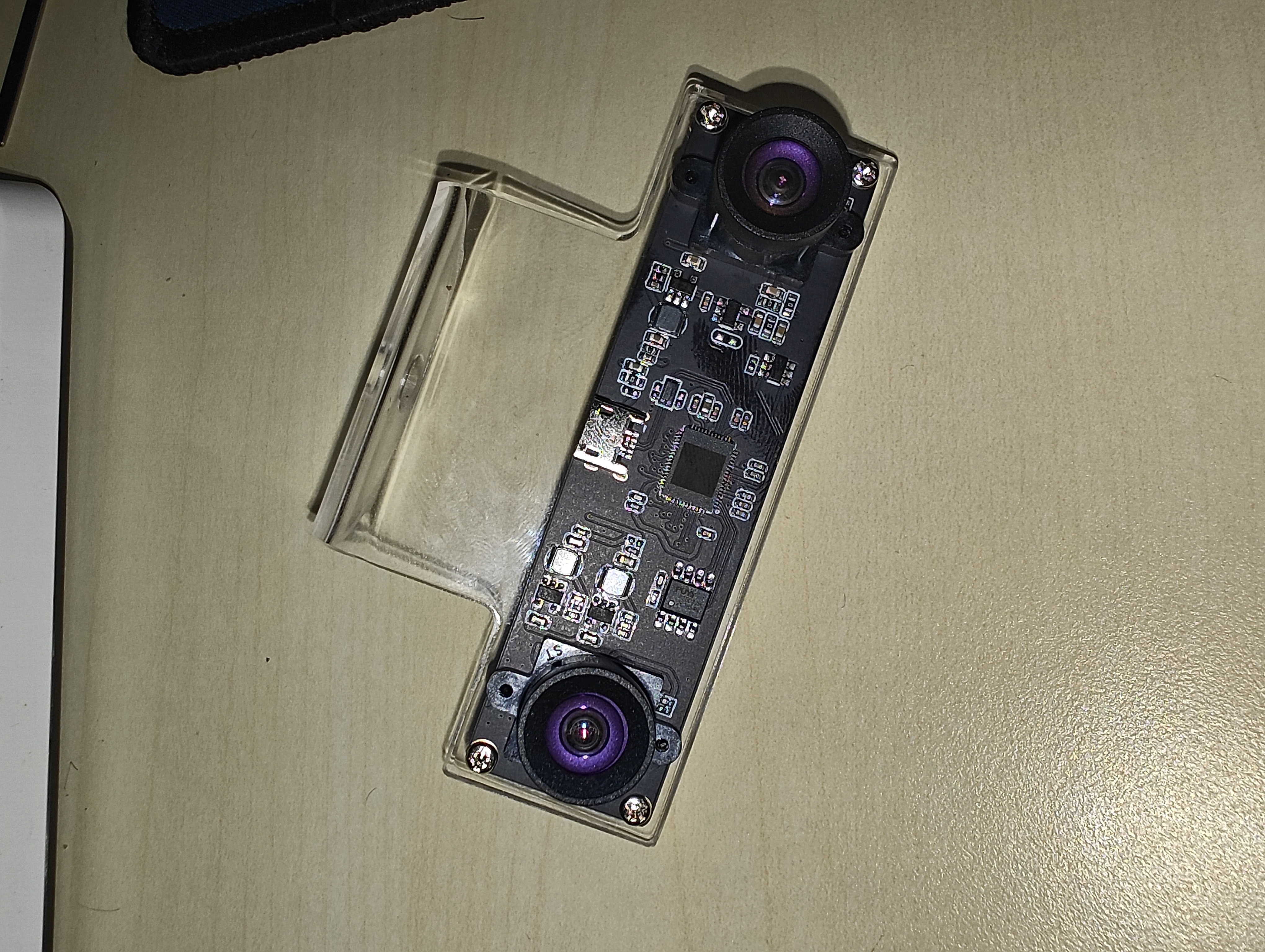

这是我的双目相机，大概两百块钱，应该可以再便宜点，当时人懒主要是实验室报销就没怎么比价格，此处代码结合地平线官方例程中的yolov5做的修改
里面带有xmd字段的是我添加的双目测距的部分
import numpy as np
import cv2
import os
from hobot_dnn import pyeasy_dnn as dnn
from bputools.format_convert import imequalresize, bgr2nv12_opencv
import lib.pyyolotools as yolotools
#xmd vvvvvvvvvv
import stereoconfig_040_2 #导入相机内参
#xmd ^^^^^^^^^^
def get_hw(pro):
if pro.layout == "NCHW":
return pro.shape[2], pro.shape[3]
else:
return pro.shape[1], pro.shape[2]
def format_yolov5(frame):
row, col, _ = frame.shape
_max = max(col, row)
result = np.zeros((_max, _max, 3), np.uint8)
result[0:row, 0:col] = frame
return result
#xmd vvvvvvvvvv
def undistortion(image, camera_matrix, dist_coeff):
undistortion_image = cv2.undistort(image, camera_matrix, dist_coeff)
return undistortion_image
# 获取畸变校正和立体校正的映射变换矩阵、重投影矩阵
# @param：config是一个类，存储着双目标定的参数:config = stereoconfig.stereoCamera()
def getRectifyTransform(height, width, config):
# 读取内参和外参
left_K = config.cam_matrix_left
right_K = config.cam_matrix_right
left_distortion = config.distortion_l
right_distortion = config.distortion_r
R = config.R
T = config.T
# 计算校正变换
R1, R2, P1, P2, Q, roi1, roi2 = cv2.stereoRectify(left_K, left_distortion, right_K, right_distortion,
(width, height), R, T, alpha=0)
map1x, map1y = cv2.initUndistortRectifyMap(left_K, left_distortion, R1, P1, (width, height), cv2.CV_32FC1)
map2x, map2y = cv2.initUndistortRectifyMap(right_K, right_distortion, R2, P2, (width, height), cv2.CV_32FC1)
return map1x, map1y, map2x, map2y, Q
# 畸变校正和立体校正
def rectifyImage(image1, image2, map1x, map1y, map2x, map2y):
rectifyed_img1 = cv2.remap(image1, map1x, map1y, cv2.INTER_AREA)
rectifyed_img2 = cv2.remap(image2, map2x, map2y, cv2.INTER_AREA)
return rectifyed_img1, rectifyed_img2
# 立体校正检验----画线
def draw_line(image1, image2):
# 建立输出图像
height = max(image1.shape[0], image2.shape[0])
width = image1.shape[1] + image2.shape[1]
output = np.zeros((height, width, 3), dtype=np.uint8)
output[0:image1.shape[0], 0:image1.shape[1]] = image1
output[0:image2.shape[0], image1.shape[1]:] = image2
# 绘制等间距平行线
line_interval = 50 # 直线间隔：50
for k in range(height // line_interval):
cv2.line(output, (0, line_interval * (k + 1)), (2 * width, line_interval * (k + 1)), (0, 255, 0), thickness=2, lineType=cv2.LINE_AA)
return output
# 视差计算
def stereoMatchSGBM(left_image, right_image, down_scale=False):
# SGBM匹配参数设置
if left_image.ndim == 2:
img_channels = 1
else:
img_channels = 3
blockSize = 3
paraml = {'minDisparity': 0,
'numDisparities': 128,
'blockSize': blockSize,
'P1': 8 * img_channels * blockSize ** 2,
'P2': 32 * img_channels * blockSize ** 2,
'disp12MaxDiff': 1,
'preFilterCap': 63,
'uniquenessRatio': 15,
'speckleWindowSize': 100,
'speckleRange': 1,
'mode': cv2.STEREO_SGBM_MODE_SGBM_3WAY
}
# 构建SGBM对象
left_matcher = cv2.StereoSGBM_create(**paraml)
paramr = paraml
paramr['minDisparity'] = -paraml['numDisparities']
right_matcher = cv2.StereoSGBM_create(**paramr)
# 计算视差图
size = (left_image.shape[1], left_image.shape[0])
if down_scale == False:
disparity_left = left_matcher.compute(left_image, right_image)
disparity_right = right_matcher.compute(right_image, left_image)
else:
left_image_down = cv2.pyrDown(left_image)
right_image_down = cv2.pyrDown(right_image)
factor = left_image.shape[1] / left_image_down.shape[1]
disparity_left_half = left_matcher.compute(left_image_down, right_image_down)
disparity_right_half = right_matcher.compute(right_image_down, left_image_down)
disparity_left = cv2.resize(disparity_left_half, size, interpolation=cv2.INTER_AREA)
disparity_right = cv2.resize(disparity_right_half, size, interpolation=cv2.INTER_AREA)
disparity_left = factor * disparity_left
disparity_right = factor * disparity_right
# 真实视差（因为SGBM算法得到的视差是×16的）
trueDisp_left = disparity_left.astype(np.float32) / 16.
trueDisp_right = disparity_right.astype(np.float32) / 16.
return trueDisp_left, trueDisp_right
#xmd ^^^^^^^^^^
# img_path 图像完整路径
# img_path = '/home/sunrise/codes/test_yolov5/left_0.jpg'
# model_path 量化模型完整路径
model_path = '/home/sunrise/codes/test_yolov5/yolov5s.bin'
# 类别名文件
classes_name_path = 'coco_classes.names'
# 设置参数
thre_confidence = 0.4
thre_score = 0.25
thre_nms = 0.45
# 框颜色设置
colors = [(255, 255, 0), (0, 255, 0), (0, 255, 255), (255, 0, 0)]
# 1. 加载模型，获取所需输出HW
models = dnn.load(model_path)
model_h, model_w = get_hw(models[0].inputs[0].properties)
print(model_h, model_w)
# 2 加载图像，根据前面模型，转换后的模型是以NV12作为输入的
# 但在OE验证的时候，需要将图像再由NV12转为YUV444
# imgOri = cv2.imread(img_path) #预设图像
# 或者拍照
camera = cv2.VideoCapture(8)
print(camera.isOpened())
camera.set(cv2.CAP_PROP_FRAME_WIDTH,2560)
camera.set(cv2.CAP_PROP_FRAME_HEIGHT,720)
ret, imgOri = camera.read()
inputImage = format_yolov5(imgOri[0:720, 0:1280])
img = imequalresize(inputImage, (model_w, model_h))
nv12 = bgr2nv12_opencv(img)
# 3 模型推理
t1 = cv2.getTickCount()
outputs = models[0].forward(nv12)
t2 = cv2.getTickCount()
outputs = outputs[0].buffer # 25200x85x1
print('time consumption {0} ms'.format((t2-t1)*1000/cv2.getTickFrequency()))
# 4 后处理
image_width, image_height, _ = inputImage.shape
fx, fy = image_width / model_w, image_height / model_h
t1 = cv2.getTickCount()
class_ids, confidences, boxes = yolotools.pypostprocess_yolov5(outputs[0][:, :, 0], fx, fy,
thre_confidence, thre_score, thre_nms)
t2 = cv2.getTickCount()
print('post consumption {0} ms'.format((t2-t1)*1000/cv2.getTickFrequency()))
#xmd vvvvvvvvvv
i = 3
string = 're'
image_left = imgOri[0:720, 0:1280] #左图
image_right = imgOri[0:720, 1280:2560] #右图
height, width = image_left.shape[0:2]
print("width = %d \n" % width)
print("height = %d \n" % height)
#读取相机内参
config = stereoconfig_040_2.stereoCamera()
#立体校正
map1x, map1y, map2x, map2y, Q = getRectifyTransform(height, width, config) # 获取用于畸变校正和立体校正的映射矩阵以及用于计算像素空间坐标的重投影矩阵
print('Q',Q)
iml_rectified, imr_rectified = rectifyImage(image_left, image_right, map1x, map1y, map2x, map2y)
line = draw_line(iml_rectified, imr_rectified)
# print('./%s检验%d.png' %(string,i), line)
cv2.imwrite('./%s检验%d.png' %(string,i), line)
iml = undistortion(image_left, config.cam_matrix_left, config.distortion_l)
imr = undistortion(image_right, config.cam_matrix_right, config.distortion_r)
iml_rectified_l, imr_rectified_r = rectifyImage(iml, imr, map1x, map1y, map2x, map2y)
disp, _ = stereoMatchSGBM(iml_rectified_l, imr_rectified_r, True)
# print('./%s视差%d.png' %(string,i), disp)
cv2.imwrite('./%s视差%d.png' %(string,i), disp)
# 计算像素点的3D坐标（左相机坐标系下）
points_3d = cv2.reprojectImageTo3D(disp, Q) # 可以使用上文的stereo_config.py给出的参数
#xmd ^^^^^^^^^^
# 5 绘制检测框
with open(classes_name_path, "r") as f:
class_list = [cname.strip() for cname in f.readlines()]
t1 = cv2.getTickCount()
list = []
for (classid, confidence, box) in zip(class_ids, confidences, boxes):
color = colors[int(classid) % len(colors)]
cv2.rectangle(imgOri, box, color, 2)
# cv2.rectangle(img, (xmin, ymin), (xmax, ymax), (0,0,255), 2)
# xmin = box[0],ymin = box[1] - 20
cv2.rectangle(imgOri, (box[0], box[1] - 20), (box[0] + box[2], box[1]), color, -1)
cv2.putText(imgOri, class_list[classid], (box[0], box[1] - 10), cv2.FONT_HERSHEY_SIMPLEX, .5, (0,0,0))
print("box[0]",box[0],"box[1]",box[1],"box[2]",box[2],"class_list[classid]",class_list[classid])
x = int((box[0]+box[2]+box[0])/2)
y = int((box[1]+box[3]+box[1])/2)
print('点 (%d, %d) 的三维坐标 (%f, %f, %f)' % (x, y, points_3d[y, x, 0]/10, points_3d[y, x, 1]/10, points_3d[y, x, 2]/10))
dis = ( (points_3d[y, x, 0] ** 2 + points_3d[y, x, 1] ** 2 + points_3d[y, x, 2] **2) ** 0.5) / 1000
print('点 (%d, %d) 距离左摄像头的相对距离为 %0.3f m' %(x, y, dis) )
if dis <= 10:
print(classid+1)
print(round(points_3d[y, x, 0]/10,2))
print(round(points_3d[y, x, 1]/10,2))
print(round(points_3d[y, x, 2]/10,2))
list.append([classid+1,round(points_3d[y, x, 0]/10,2),round(points_3d[y, x, 1]/10,2),round(points_3d[y, x, 2]/10,2),round(dis,2)])
t2 = cv2.getTickCount()
print('draw rect consumption {0} ms'.format((t2-t1)*1000/cv2.getTickFrequency()))
print(list[0][0])
cv2.imwrite('res.png', imgOri)
其中stereoconfig_040_2.py是相机标定文件，-
其中数值来自Matlab标定结果，参考我的
import numpy as np
####################仅仅是一个示例###################################
# 双目相机参数
class stereoCamera(object):
def __init__(self):
# 左相机内参
# 1051.11659064493 0 0
# -1.89879698679960 1049.84130477950 0
# 634.619437827553 493.773368290712 1
self.cam_matrix_left = np.array([ [1051.1166, -1.8988, 634.6194],
[ 0, 1049.8413, 493.7734],
[ 0, 0, 1]
])
# 右相机内参
# 1051.83160192579 0 0
# -2.02039911612483 1047.22197211167 0
# 664.795908482304 510.350394680884 1
self.cam_matrix_right = np.array([ [1051.8316, -2.0204, 664.7959],
[ 0, 1047.2220, 510.3504],
[ 0, 0, 1]
])
# 左右相机畸变系数:[k1, k2, p1, p2, k3] [-0.013781963314708,0.053508639384062,[-0.001767389944871,0.008806335095328],0.207695529605878]
self.distortion_l = np.array([[-0.0212, 0.1042, -0.0020, 0.0059, 0.4863]])
self.distortion_r = np.array([[-0.0138, 0.0535, -0.0018, 0.0088, 0.2077]])
# 旋转矩阵
# 0.999980864653300 0.000221501479809274 0.00618233486092491
# -0.000298314433637631 0.999922744426069 0.0124264310216711
# -0.00617910476823695 -0.0124280375173278 0.999903676634770
self.R = np.array([ [ 1, -0.0003, -0.0062],
[0.0002, 1.0000, -0.0124],
[ 0.0061, 0.0124, 1.0000]
])
# 平移矩阵[-60.826943209894390,0.092931782588213,-2.177973655721749]
self.T = np.array([[-60.8269], [0.0929], [-2.1780]])
# 焦距1051.11659064493
self.focal_length = 1051.1166 # 默认值，一般取立体校正后的重投影矩阵Q中的 Q[2,3]
# 基线距离
self.baseline = 60.8269 # 单位：mm， 为平移向量的第一个参数（取绝对值）
将两个缝合在一起，需要做相机与机械臂的标定，但是没有成功，所以我采取了暴力的方式，直接测量相机坐标与机械臂基坐标的倾角，然后解算相机坐标系中的目标转移到机械臂基坐标下的目标。-

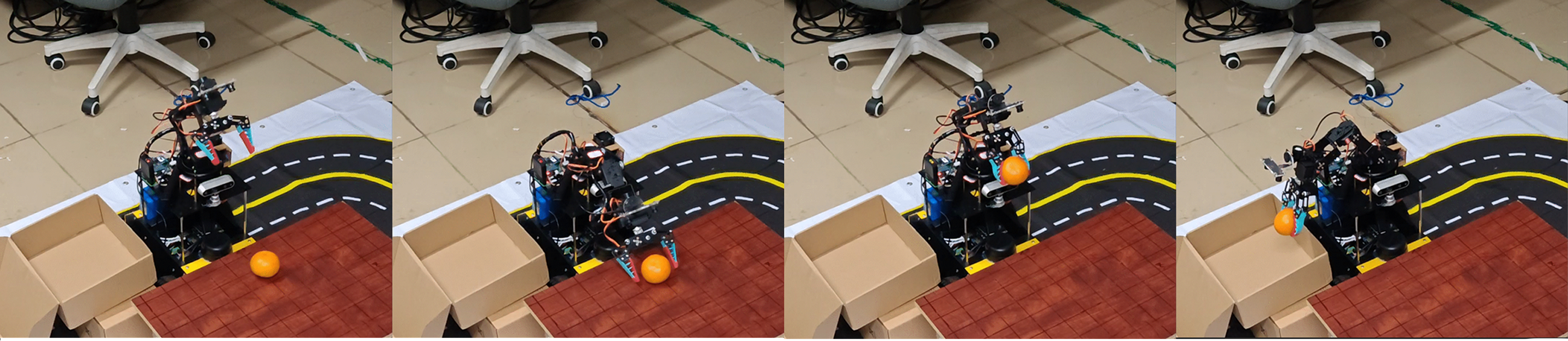

效果如图：-
抓取.gif![抓取.gif]上传附件限制大小10m我也不知道可不可以看见这个动图![抓取.png]-
然后这有个静态的截图
