RDK x5接GS130W双目相机模组，vio2display识别不到相机（C DEV示例）

开发与问题 硬件开发
,
1

操作过程参考了vio2display示例：

vio2display输出的日志，提示“No camera sensor found, please check whether the camera connection or video_idx is correct”：

./vio2display -h 1080 -w 1280
Opened DRM device: /dev/dri/card0
1024x600
832x624
800x600
720x576
720x480
720x400
640x480
disp_w=1024, disp_h=600
2026/01/12 12:50:32.185 !INFO [OpenCamera][0447]hbn module
set camera fps: -1,width: 1280,height: 1080
Camera 0:
	mipi_host: 0
Camera 1:
	mipi_host: 2
Camera 2:
	mipi_host: 0
Camera 3:
	mipi_host: 0
mipi mclk is not configed.
Searching camera sensor on device: /proc/device-tree/soc/cam/vcon@0 i2c bus: 6 mipi rx phy: 0
WARN: Sensor Name: sc1330t, Expected Chip ID: 0xCA18, Actual Chip ID Read: 0x00
WARN: Sensor Name: irs2875-tof, Expected Chip ID: 0x2875, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-10fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-10fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x132
WARN: Sensor Name: sc230ai-10fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc230ai-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x132
WARN: Sensor Name: sc230ai-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-1280p, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc132gs-hdr-2lane, Expected Chip ID: 0x132, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs, Expected Chip ID: 0x31, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs_mono, Expected Chip ID: 0x31, Actual Chip ID Read: 0x32
WARN: Sensor Name: sc035hgs_mono, Expected Chip ID: 0x31, Actual Chip ID Read: 0x32
WARN: Sensor Name: ov5640, Expected Chip ID: 0x5640, Actual Chip ID Read: 0x00
WARN: Sensor Name: f37, Expected Chip ID: 0xF37, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx415-30fps-2lane, Expected Chip ID: 0x03, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx415-30fps-2lane, Expected Chip ID: 0x03, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx415-30fps-4lane, Expected Chip ID: 0x03, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx415-30fps-4lane, Expected Chip ID: 0x03, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc202cs-1600x1200, Expected Chip ID: 0xEB52, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc202cs-1600x1200, Expected Chip ID: 0xEB52, Actual Chip ID Read: 0x00
WARN: Sensor Name: irs2381c-tof, Expected Chip ID: 0x2381, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs-vc0, Expected Chip ID: 0x35, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc035hgs-vc1, Expected Chip ID: 0x35, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc231ai-30fps, Expected Chip ID: 0xCB6A, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc231ai-30fps, Expected Chip ID: 0xCB6A, Actual Chip ID Read: 0x132
WARN: Sensor Name: sc231ai-30fps, Expected Chip ID: 0xCB6A, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx586-30fps-4lane, Expected Chip ID: 0x586, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx586-30fps-4lane, Expected Chip ID: 0x586, Actual Chip ID Read: 0x00
WARN: Sensor Name: os08c10-30fps-2lane, Expected Chip ID: 0x53, Actual Chip ID Read: 0x00
WARN: Sensor Name: os08c10-30fps-2lane, Expected Chip ID: 0x53, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0820std-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0820std-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc1336, Expected Chip ID: 0xCA3F, Actual Chip ID Read: 0x00
WARN: Sensor Name: dummy, Expected Chip ID: 0x00, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ar0233-30fps, Expected Chip ID: 0xA55A, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-200fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-200fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-120fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov9782-120fps-2lane, Expected Chip ID: 0x9281, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-640x480-30fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-640x480-30fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-1632x1232-30fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-1632x1232-30fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-1920x1080-30fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-1920x1080-30fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-3264x2464-15fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-3264x2464-15fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-3264x2464-21fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx219-3264x2464-21fps, Expected Chip ID: 0x219, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov5647-640x480-60fps, Expected Chip ID: 0x5647, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov5647-1280x960-30fps, Expected Chip ID: 0x5647, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov5647-1920x1080-30fps, Expected Chip ID: 0x5647, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov5647-2592x1944-15fps, Expected Chip ID: 0x5647, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-1280x960-120fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-1280x960-120fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-1920x1080-50fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-1920x1080-50fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-2016x1520-21fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-2016x1520-21fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-4000x3000-10fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx477-4000x3000-10fps, Expected Chip ID: 0x477, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov50h40-30fps-4lane, Expected Chip ID: 0x6C, Actual Chip ID Read: 0x00
WARN: Sensor Name: ov50h40-30fps-4lane, Expected Chip ID: 0x6C, Actual Chip ID Read: 0x00
WARN: Sensor Name: ox05b1s, Expected Chip ID: 0x58, Actual Chip ID Read: 0x00
WARN: Sensor Name: ox05b1s, Expected Chip ID: 0x58, Actual Chip ID Read: 0x00
WARN: Sensor Name: ox05b1s, Expected Chip ID: 0x58, Actual Chip ID Read: 0x00
WARN: Sensor Name: ox05b1s, Expected Chip ID: 0x58, Actual Chip ID Read: 0x00
WARN: Sensor Name: ox05b1s_2lane, Expected Chip ID: 0x58, Actual Chip ID Read: 0x00
WARN: Sensor Name: ox05b1s_2lane, Expected Chip ID: 0x58, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx415-60fps-4lane, Expected Chip ID: 0x03, Actual Chip ID Read: 0x00
WARN: Sensor Name: imx415-60fps-4lane, Expected Chip ID: 0x03, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc850sl-30fps, Expected Chip ID: 0x9D1E, Actual Chip ID Read: 0x00
WARN: Sensor Name: sc850sl-30fps, Expected Chip ID: 0x9D1E, Actual Chip ID Read: 0x00
WARN: Sensor Name: shw3g-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
WARN: Sensor Name: shw3g-30fps, Expected Chip ID: 0xCB34, Actual Chip ID Read: 0x00
2026/01/12 12:50:32.477 ERROR [CamInitParam][0283]No camera sensor found, please check whether the camera connection or video_idx is correct.

2026/01/12 12:50:32.477 ERROR [OpenCamera][0495]CamInitParam failed error(-1)
[Error] sp_open_camera failed!

软件环境：

# cat /etc/version
3.4.1

root@ubuntu:~# dpkg --status hobot-spdev
Package: hobot-spdev
Status: install ok installed
Installed-Size: 1057
Maintainer: developer@d-robotics.cc
Architecture: arm64
Version: 3.0.8-20251208164547
Depends: hobot-multimedia, hobot-camera, hobot-dnn
Description: Python and C/C++ Development Interface
 Git Commit: 19e6f00fe0c792be14fdda6bef9360cde113ff3d

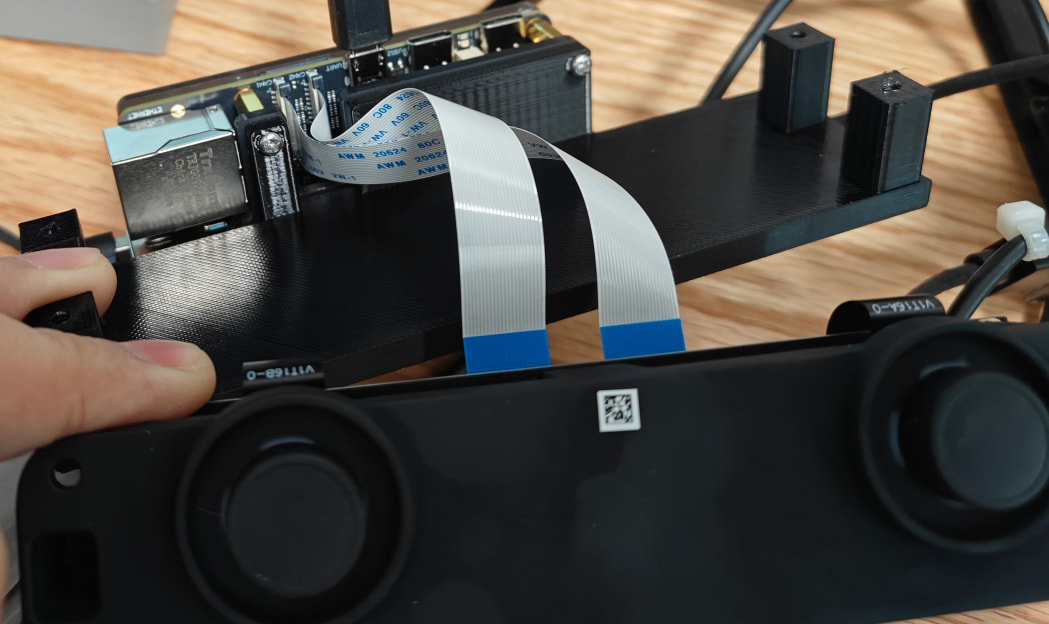

接线：

image1049×624 108 KB

尝试过的排障:

  1. 尝试根据提示“No camera sensor found, please check whether the camera connection or video_idx is correct”，修改video_idx的值，无果。
  2. 跑TROS的示例“5.2.1 数据采集”、“双目深度算法”，都是正常能出图的，跑出来的深度数据也正常，说明硬件和接线没问题
  3. i2cdetect看着也没什么问题：
root@ubuntu:/app/cdev_demo/vio2display# i2cdetect -r -y 4
     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00:                         -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- 33 -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: 50 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
root@ubuntu:/app/cdev_demo/vio2display# i2cdetect -r -y 6
     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00:                         -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- 32 -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --

请帮忙排障，万分感谢！

连接深度相机后rdkx5没有识别出来
平台使用RDK X5，RDK GS130W(I)官方双目全局快门相机
sc132gs的双目模组，需要开机等待一分钟后才能获取isp图像
[双目相机] 是否支持其他载板
2

找到源码`x5-hobot-spdev/src/vp_sensors/sc132gs/linear_1088x1280_raw10_60fps_1lane.c`后发现启动命令的高度参数不对，GS130W模组的sc132gs传感器对应启动命令应该为：

./vio2display -w 1088 -h 1280

现已正常工作！打扰了，麻烦帮结贴，谢谢

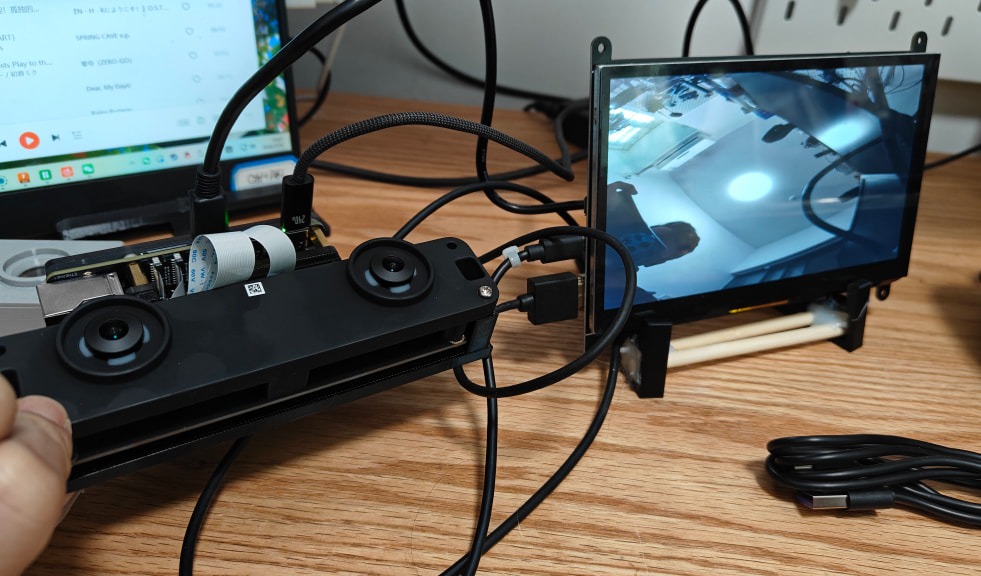

image981×576 154 KB
